Air Slide Conveyor For Conveying Powdered Materials

Product Features

• Low Maintenance Design：No moving parts within the conveying channel reduces mechanical wear and maintenance requirements.
• Gentle Material Handling：Fluidized powder transport minimizes product degradation and particle breakage.
• Energy Efficient Operation：Utilizes low-pressure air for material movement with reduced power consumption compared to mechanical systems.
• Customizable Configuration：Available in various lengths, angles, and fabric specifications to match specific process requirements.

Product Description

The Air Slide Conveyor operates on the principle of fluidization, where low-pressure air passes through a porous media, reducing the internal friction of powdered materials and enabling gravity-assisted flow. This system is engineered for continuous handling of fine, dry powders in industrial settings where consistent material transfer is required.

Manufactured in compliance with industrial material handling standards, the conveyor features abrasion-resistant fabrics and precision-welded steel construction. The design incorporates controlled air distribution for uniform material flow across the entire conveying surface.

Application Areas

This product is suitable for the following industrial scenarios：

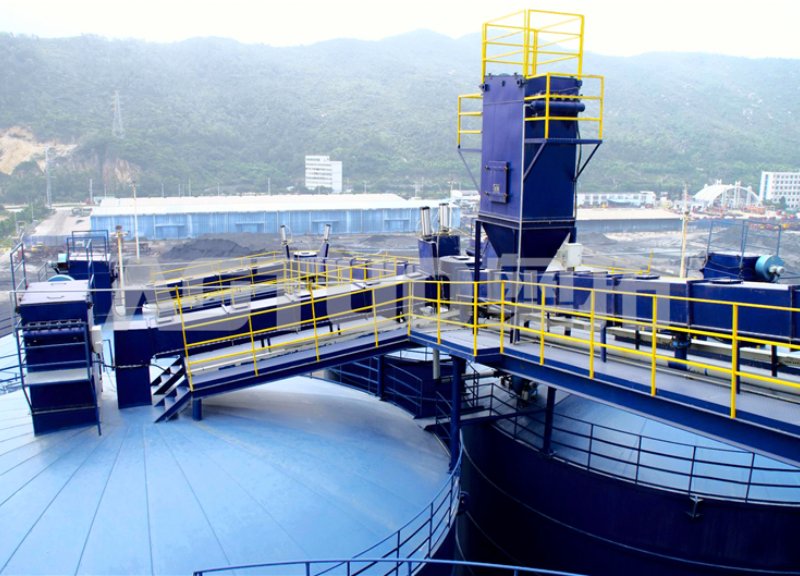

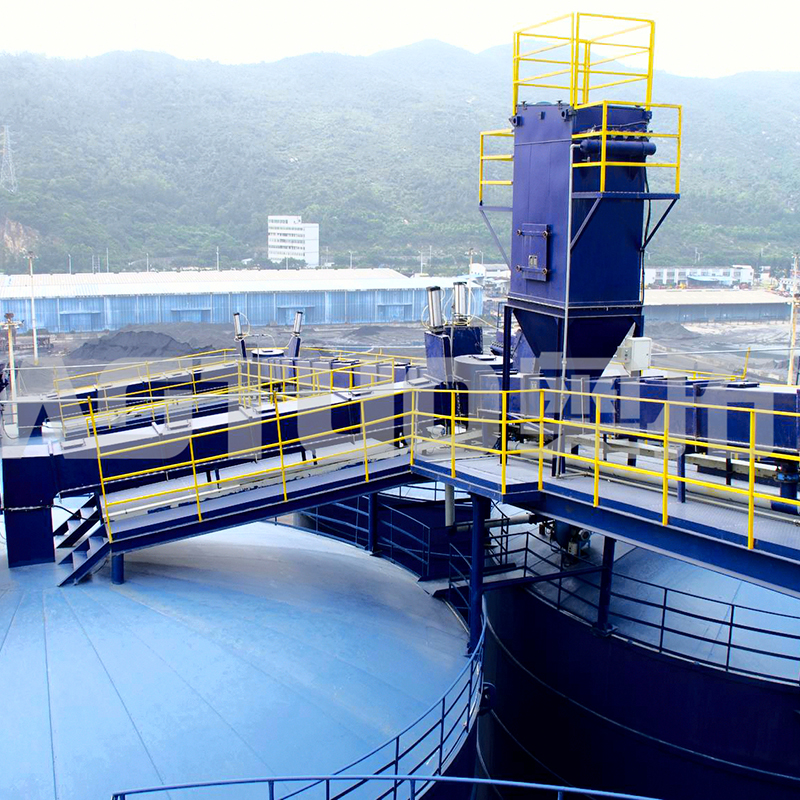

• Cement manufacturing and cement silo discharge systems
• Fly ash handling in power generation facilities
• Flour and grain processing in food industry applications
• Chemical powder transfer in production processes
• Pharmaceutical raw material conveying systems
• Lime and alumina transport in mineral processing

FAQ

What materials are suitable for air slide conveyor systems?

Air slide conveyors are designed for fine, dry powders with good fluidization characteristics, typically in the 0.1-0.5 mm particle size range. Suitable materials include cement, fly ash, flour, alumina, and similar dry powders with moisture content below 1%. Materials with poor fluidization properties or high moisture content may require specialized porous media or alternative conveying methods.

How is maintenance performed on an air slide conveyor?

Maintenance primarily involves periodic inspection and replacement of the porous fabric media, which typically lasts 2-5 years depending on material abrasiveness. Regular checks of air supply systems and cleaning of air chambers are recommended. The system requires inspection for material buildup and fabric damage during scheduled downtime. Replacement procedures involve removing the upper casing and installing new media according to manufacturer specifications.

What factors determine the conveying capacity of an air slide?

Conveying capacity is determined by multiple factors including the slope angle (typically 4-10 degrees), material characteristics (density, particle size, fluidization properties), air volume and pressure, porous media permeability, and conveyor cross-sectional area. Capacity calculations require specific material testing data and system parameters to ensure optimal performance for each application.
